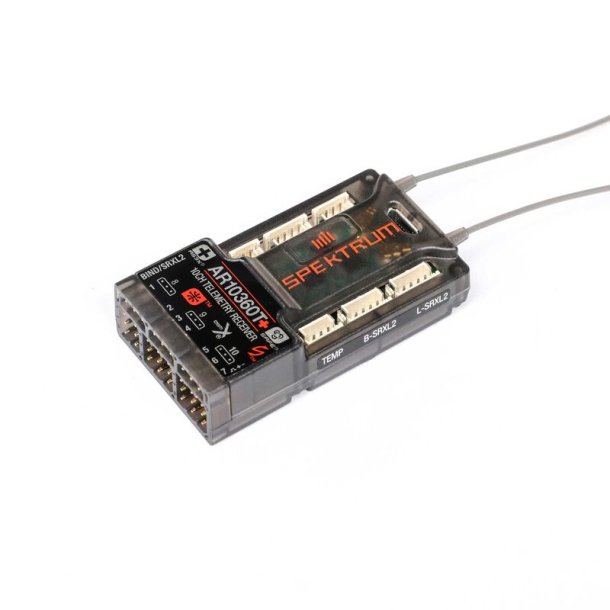

The Spektrum™ AR10360T+ 10 Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. This receiver is full-range with built-in AS3X+® and SAFE® stabilization.
- Built-in AS3X+ stabilization, which counters the effects of wind, turbulence, and torque using a 3-axis MEMS gyro
- Exclusive flight control software tuned by expert RC pilots
- Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase
- Smart Transmitter Model File Download support
- Features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application
AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver Features
- Compatible with all Spektrum DSM2 and DSMX transmitters
- AS3X+ and SAFE set up through Forward Programming directly from your Spektrum transmitter
- Compact footprint fits most parkflyer size, sport class, and giant scale models
- Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need for additional sensors
- VOLT, RPM, and TEMP telemetry ports can be used with traditional Spektrum Telemetry Sensors
- XBUS telemetry port for expandable telemetry capabilities, like GPS, Air Speed, Flight Battery Energy, and more
- Two external antennas will ensure secure RF coverage from all angles of the aircraft
- Additional RF path redundancy with up to 2 additional SRXL2 Remote Receivers, SPM9747 or SPM4651T, sold separately
- Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links, and wires
- End pin output pins for easy and compact installation
- Forward Programming capable of setting individual failsafe parameters per channel, programming AS3X+ and SAFE parameters, and more
- Micro USB port for firmware updating and model setup sharing capability
- Stop Lock and Release Rate parameters
- Heading Hold improvements
- Improved gryo filtering
- Canard and Thrust Vectoring Support
Antenna Length7.32" (186 mm)
- ApplicationAirplane, Sailplane
- Band2.4GHz
- Bind MethodBind Button
- Channels10
- FailsafeYes
- Forward ProgrammingYes
- Input Voltage3.5V–9V
- Integrated VariometerYes
- ModulationDSMX/DSM2
- Product ApplicationAir, Sailplanes
- Product Height0.59" (15 mm)
- Product Length2.16" (55 mm)
- Product Weight18 g (0.63 oz)
- Product Width1.18" (30 mm)
- ProgrammableYes
- RangeFull
- Remote Receiver Ports2
- Serial OutSRXL2
- TechnologyAS3X+, SAFE
- TelemetryYes
- Telemetry RangeFull-Range Integrated
