Product Details

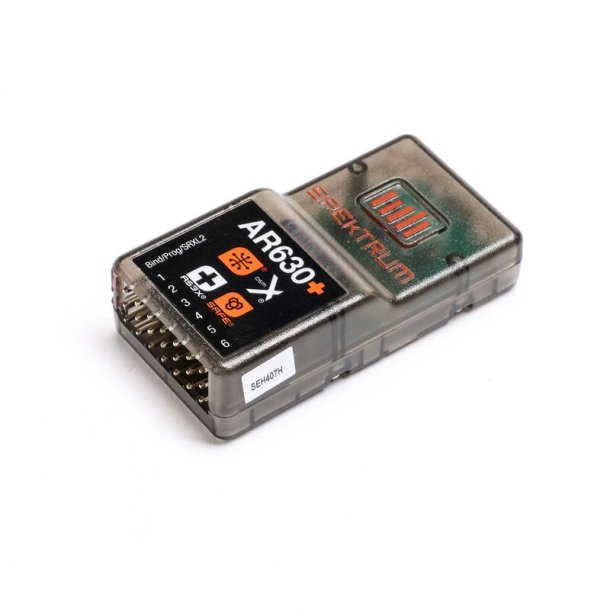

The Spektrum™ AR630+ 6 Channel AS3X+ Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR630+ is a full-range 6-channel receiver with built-in AS3X+® and SAFE® stabilization. The all-new AS3X+ stabilization algorithm creates better flight performance, improved sensor accuracy and data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You’ll simply feel like you’re flying an expertly tuned model that does exactly what you want. *Please note – Using this receiver in turbine-powered aircraft models is not recommended
Key Features
- Antenna-less design for easy installation and increased performance
- Built-in AS3X+ Stabilization System with SAFE flight envelope protection
- AS3X+ and SAFE set up through Forward Programming directly from your Spektrum transmitter
- Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need for modules, links, and wires
- DSMX protocol receiver with DSM2 backward compatibility
In The Box
- (1) Spektrum AR630+ AS3X+ / SAFE Receiver
- (1) Product Manual
Product Specifications
| Application | Air |
| Band | 2.4GHz |
| Bind Method | Bind Button |
| Channels | 6 |
| Dimensions | 1.85 x 0.98 x 0.51 in (47 x 25 x 13 mm) |
| Failsafe | Yes |
| Forward Programming | Yes |
| Input Voltage | 3.5 - 9V |
| Integrated Variometer | No |
| Modulation | DSMX/DSM2 |
| Product Application | Air |
| Product Height | 0.51" (13 mm) |
| Product Length | 1.85" (47 mm) |
| Product Weight | 0.34 oz (9.5 g) |
| Product Width | 0.98" (25 mm) |
| Range | Full |
| Remote Receiver Ports | 0 |
| Resolution | 2048 |
| Serial Out | SRXL2 |
| Technology | AS3X+, SAFE |
| Telemetry | Yes |
| Telemetry Range | Fly-By |
